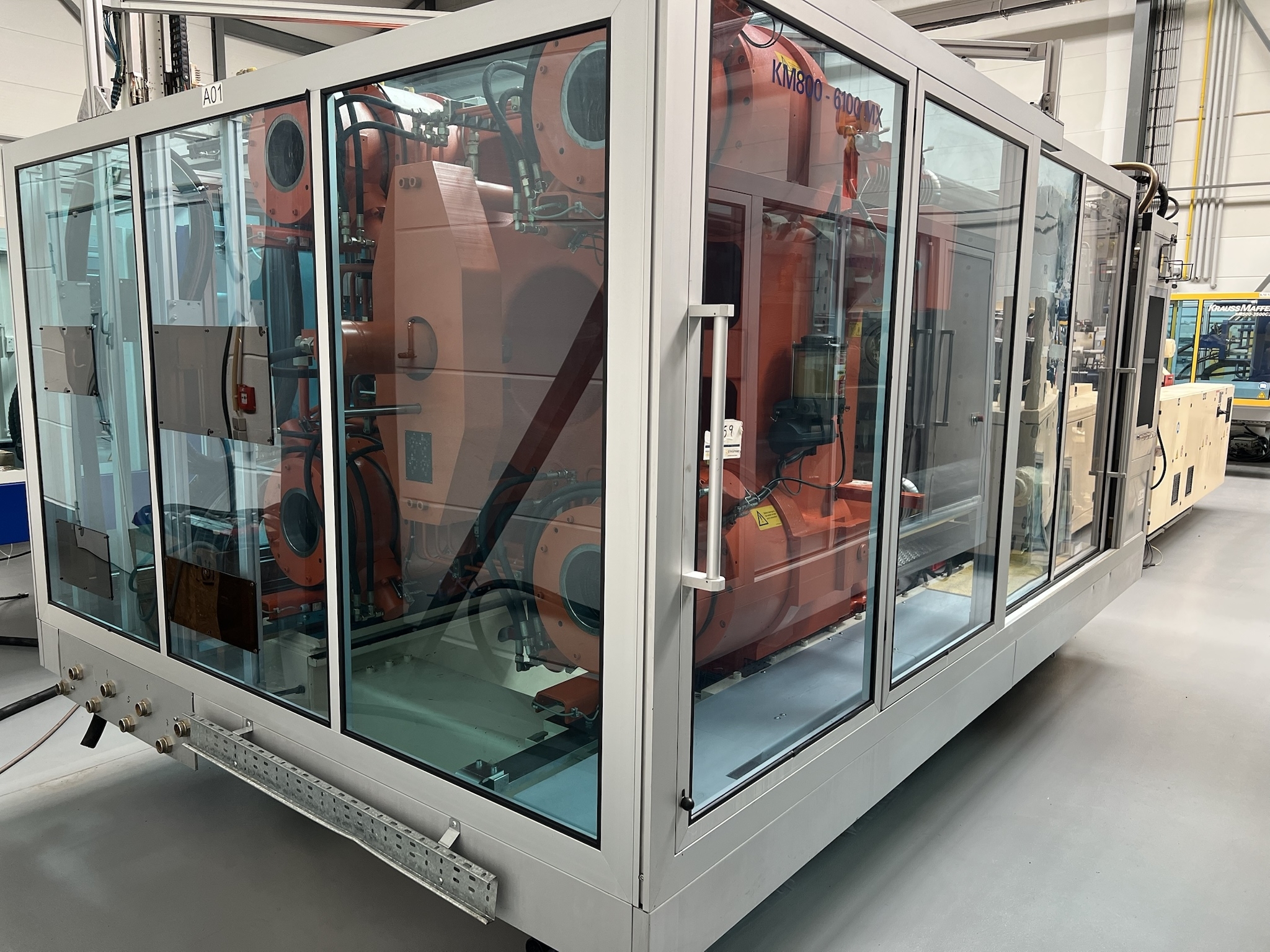

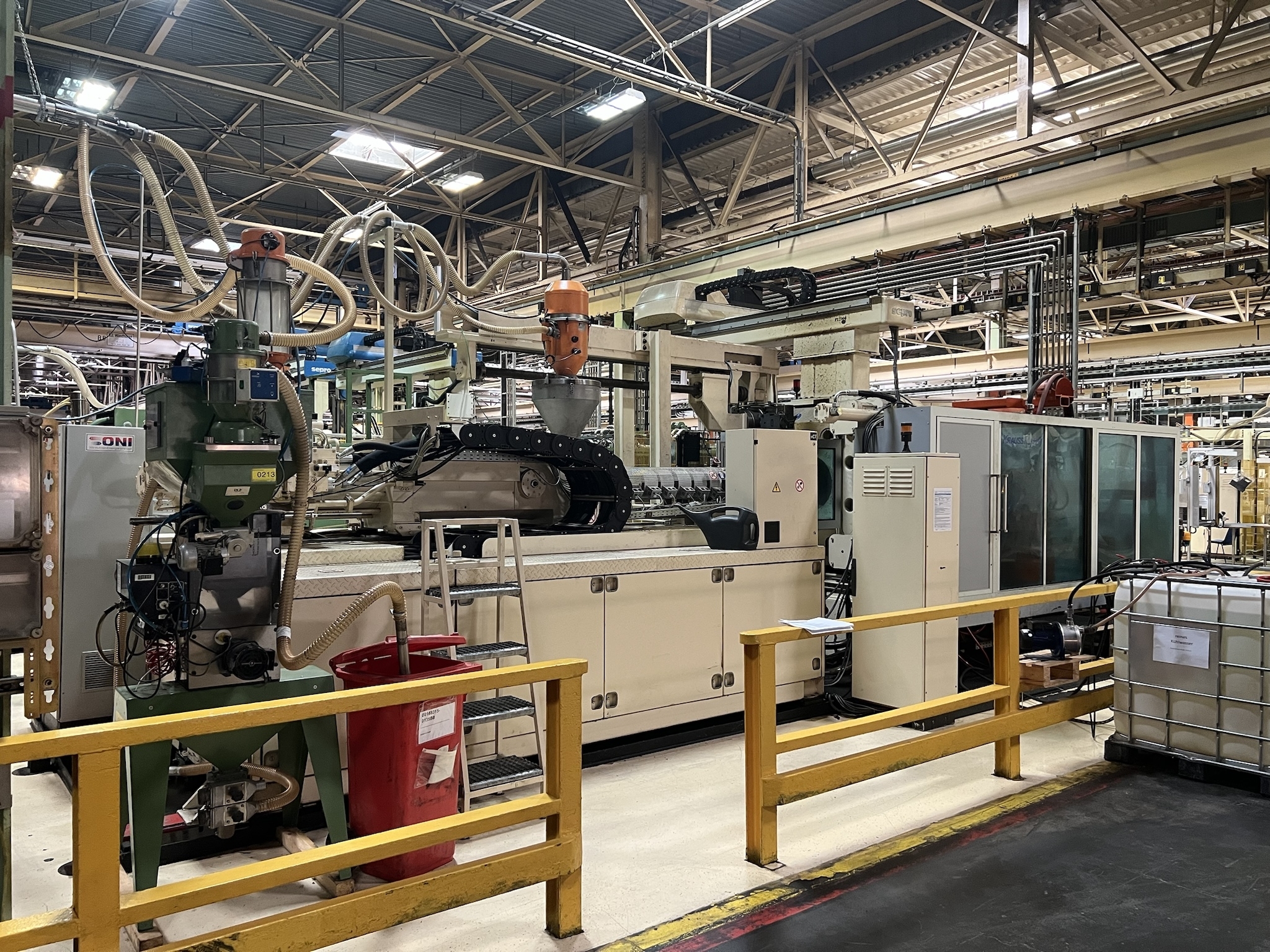

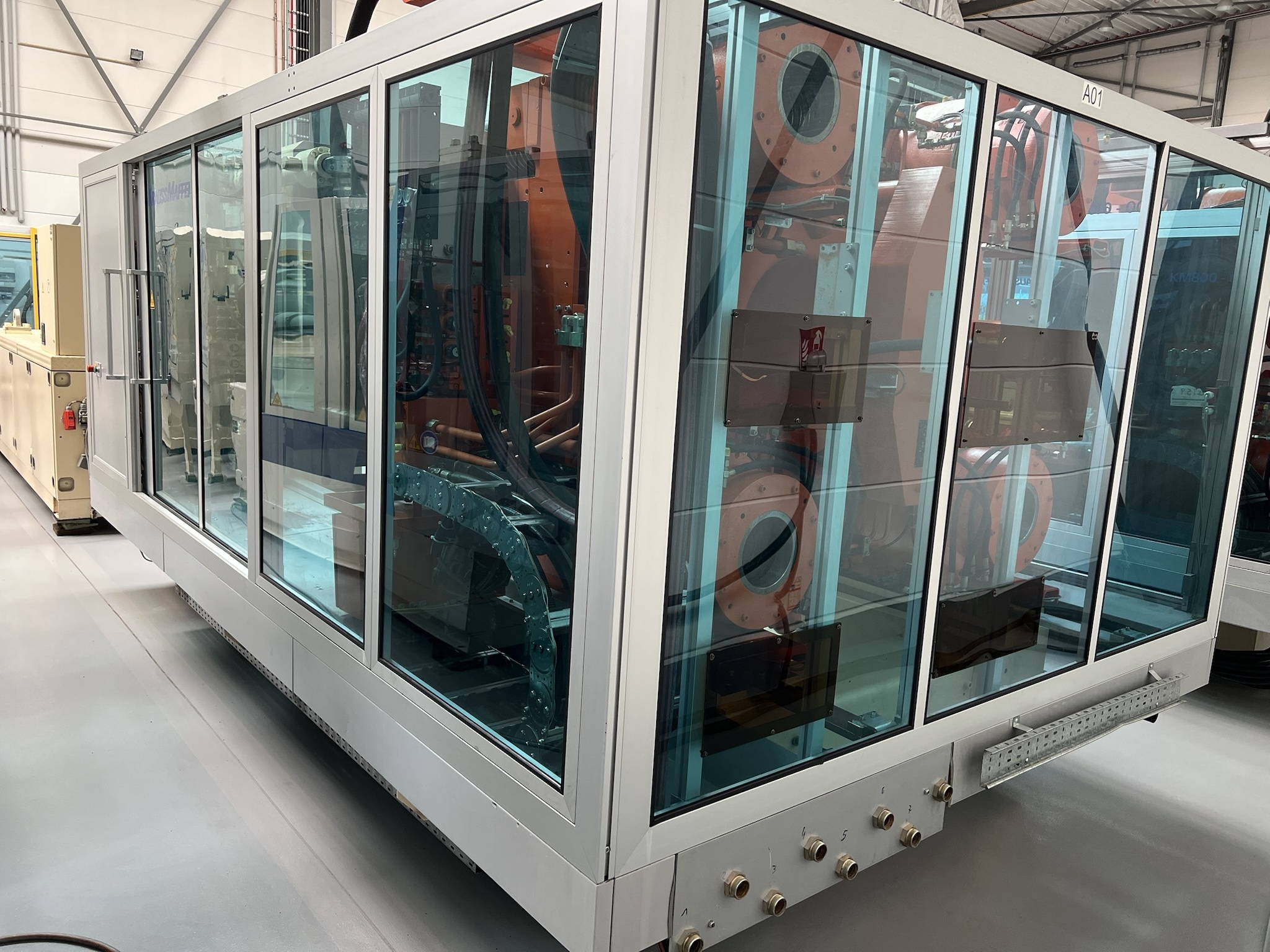

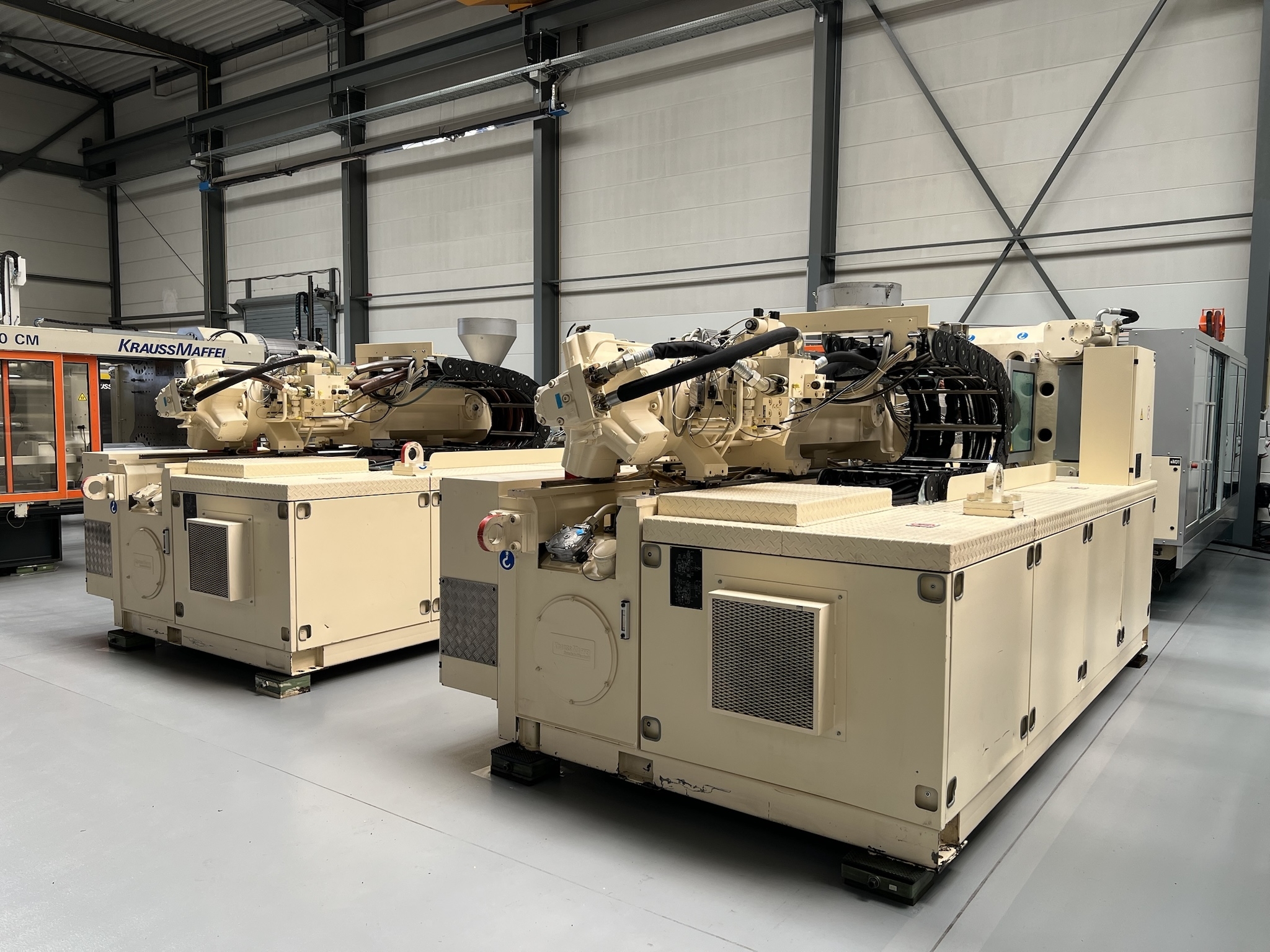

Krauss Maffei KM 800 - 6100 MX

Offer-Details:

Stock-No.

14362

Manufacturer

Krauss Maffei

Type of machine

KM 800 – 6100 MX

Year

2006

Working hours

30000 h

Controlversion

MC 5

Screentext

German - English

Location

Eschweiler - Germany

Clamping unit:

Clamping force

8000

kN

Mould opening force, max.

560

kN

Travel force movable platen opening

89

kN

Travel force movable platen closing

92

kN

Size of mould platens (h x v)

1600 x 1550

mm

Distance between tie bars (h x v)

1120 x 1000

mm

Mould opening stroke

1600

mm

Mould height min/max

500/1100

mm

Max. daylight

2100

mm

Hydraulic ejector - stroke

300

mm

Ejector force

200/100

kN

Injection unit:

Screw diameter

95

mm

Ls/D ratio

23

Injection pressure

1795

bar

Stroke volume

3367

ccm

Shot weight (PS)

3064

gr.

Injection rate

690

ccm/s

Screw speed

116

1/min

Plasticising rate max.

104

g/s

Nozzle pressure

166

kN

Electric and Hydraulic Equipment:

Nominal capacity of pump motor

90

kW

Installed heating capacity

53

kW

Adjustable barrel heating zones

7

Oil Reservoir capacity

1500

ltr.

Dimensions and weights:

Dimensions of the machine ca.

11,00 x 3,00 x 2,60

m

Total machine weight

44500

kg

Max. mould weight

12200

kg

Accessories:

- Anti vibration pads

Additional Options:

- 1 x air valve

- tiebar pull system

- 3 x core pulls on movable plate

- 2 x core pulls on fix plate

- 20 x hot runner controller

- Robot interface according to Euromap 67

Description:

This second hand injection moulding machine Krauss Maffei KM 800 – 6100 MX is tested and in working condition
