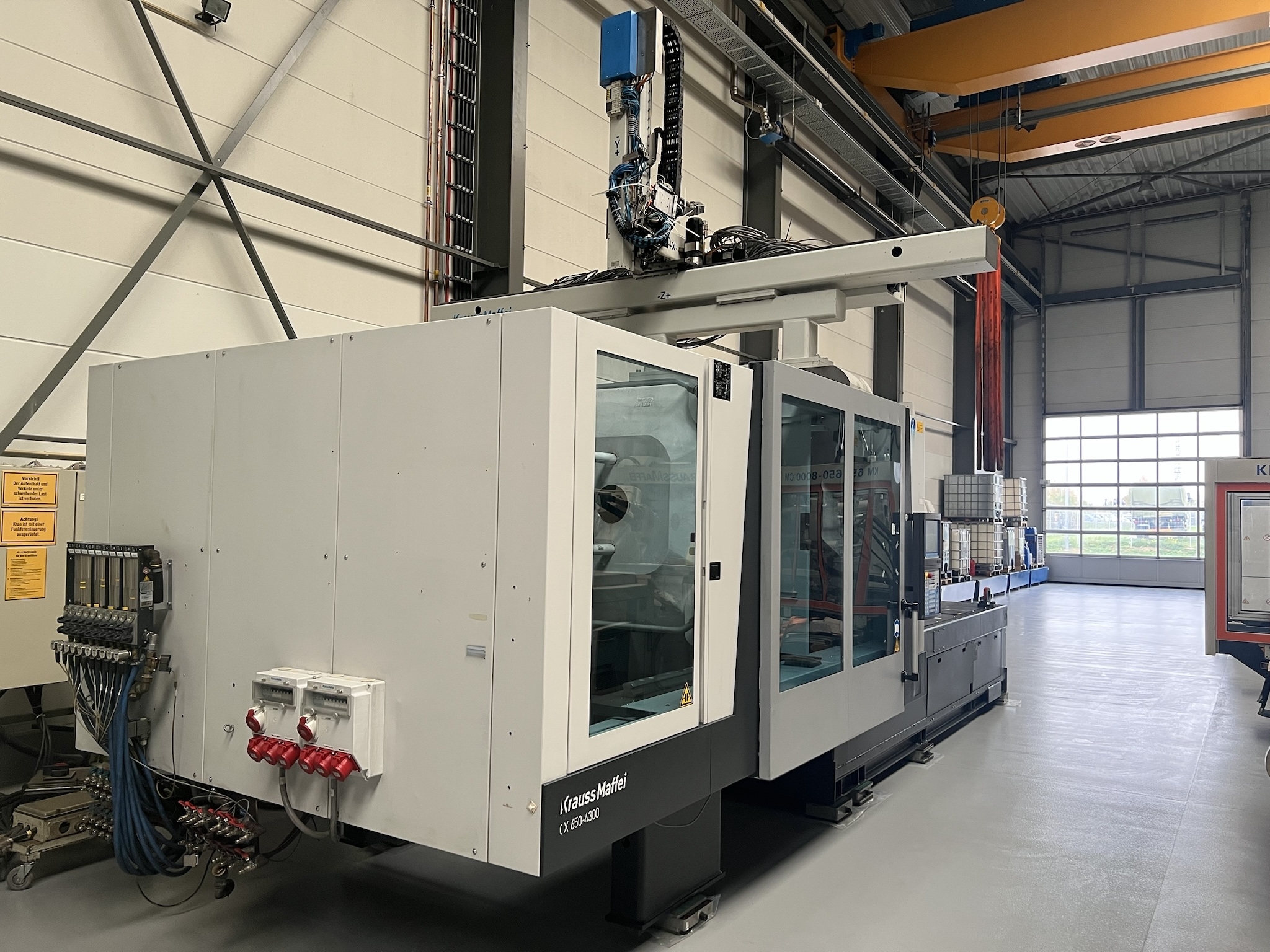

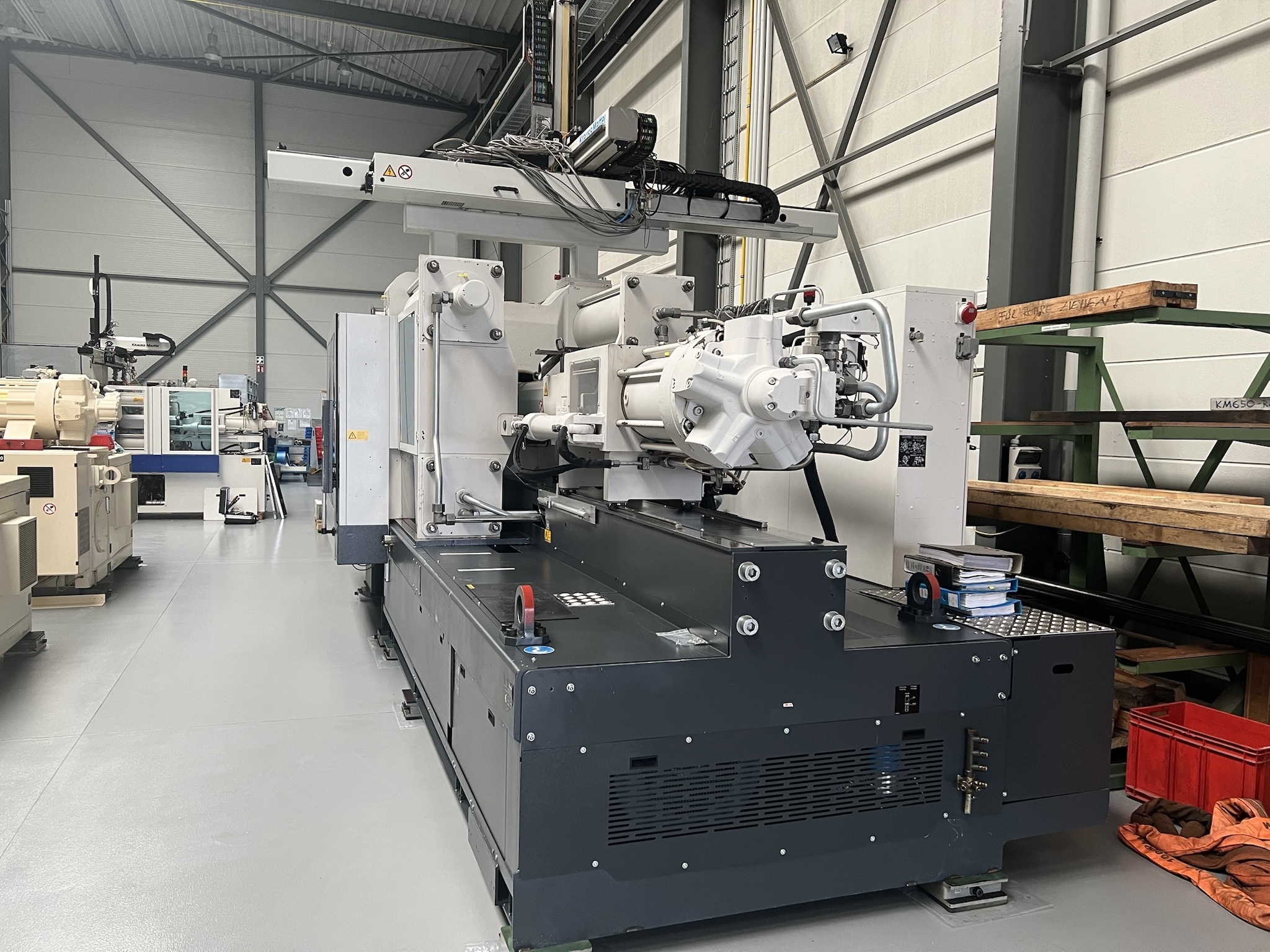

Krauss Maffei KM 650 - 4300 CX incl. Krauss Maffei Robot LRX250

Offer-Details:

Stock-No.

14496

Manufacturer

Krauss Maffei

Type of machine

KM 650 - 4300 CX

Year

2010

Working hours

43000 h

Controlversion

MC 5

Screentext

German

Location

Eschweiler - Germany

Clamping unit:

Clamping force

6500

kN

Mould opening force, max.

346

kN

Travel force movable platen opening

169

kN

Travel force movable platen closing

144

kN

Size of mould platens (h x v)

1510 x 1370

mm

Distance between tie bars (h x v)

1000 x 930

mm

Mould opening stroke

1150

mm

Mould height min

600

mm

Max. daylight

1750

mm

Hydraulic ejector - stroke

250

mm

Ejector force

95 / 48

kN

Injection unit:

Screw diameter

80

mm

Ls/D ratio

22,5

Injection pressure

2205

bar

Stroke volume

1810

ccm

Shot weight (PS)

1647

gr.

Injection rate

498

ccm/s

Screw speed

195

1/min

Plasticising rate max.

106

g/s

Nozzle pressure

129

kN

Electric and Hydraulic Equipment:

Nominal capacity of pump motor

90

kW

Installed heating capacity

44

kW

Adjustable barrel heating zones

7

Dimensions and weights:

Dimensions of the machine ca.

8,50 x 3,00 x 2,70

m

Total machine weight

35000

kg

Accessories:

- Anti vibration pads

- 10-fold water regulator

- Krauss Maffei Robot LRX250

X: 900 mm Servo

Y: 1000/1000 mm Servo

Z: 3500 mm Servo

C: 0 - 90 °

Additional Options:

- 2 x core pulls on movable plate

- 2 x core pulls on fix plate

- Robot interface according to Euromap 67

- 6 x hydraulic sequentional valves

- 12 x hotrunner controller

- 1 x Air valve
