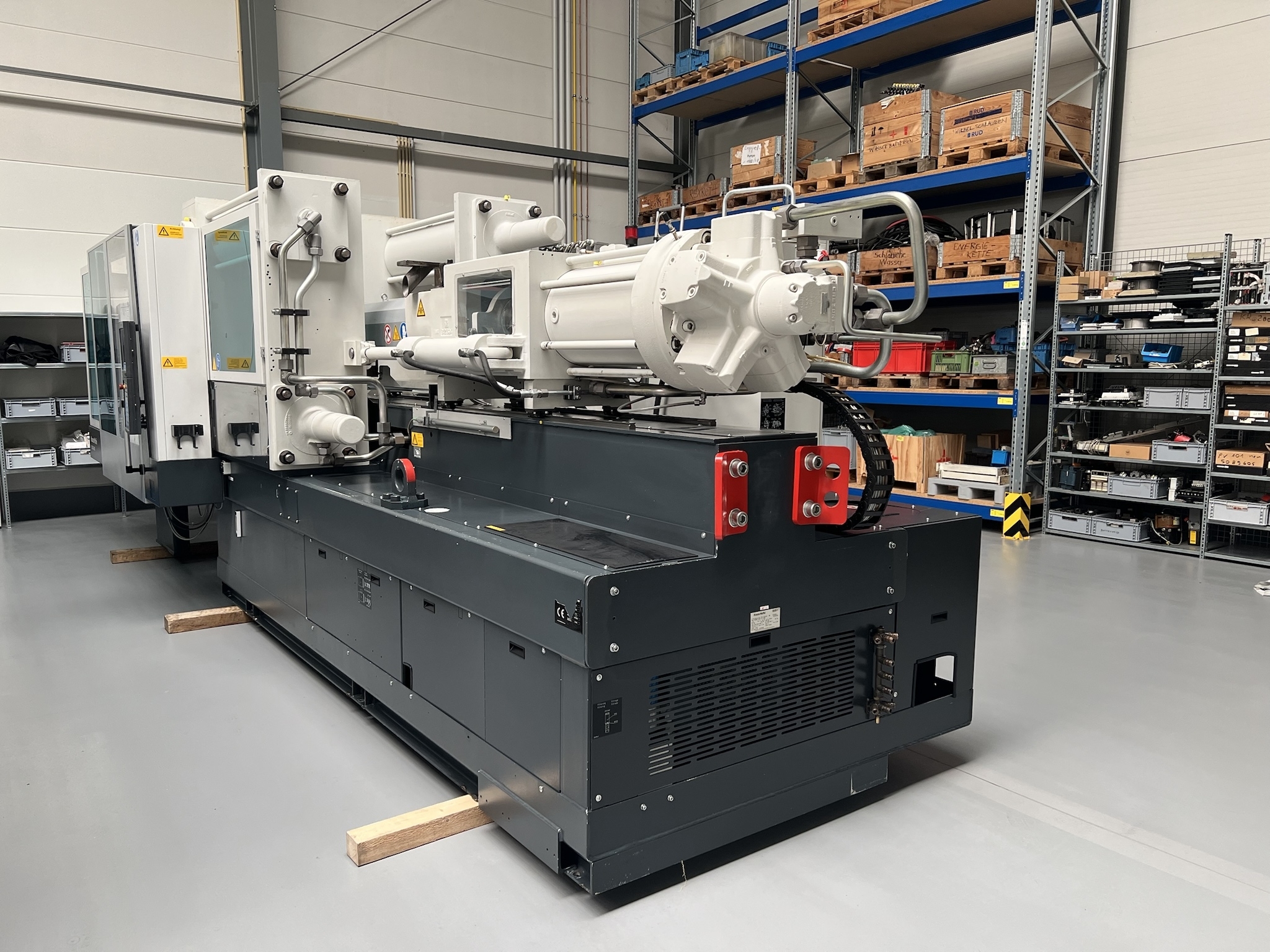

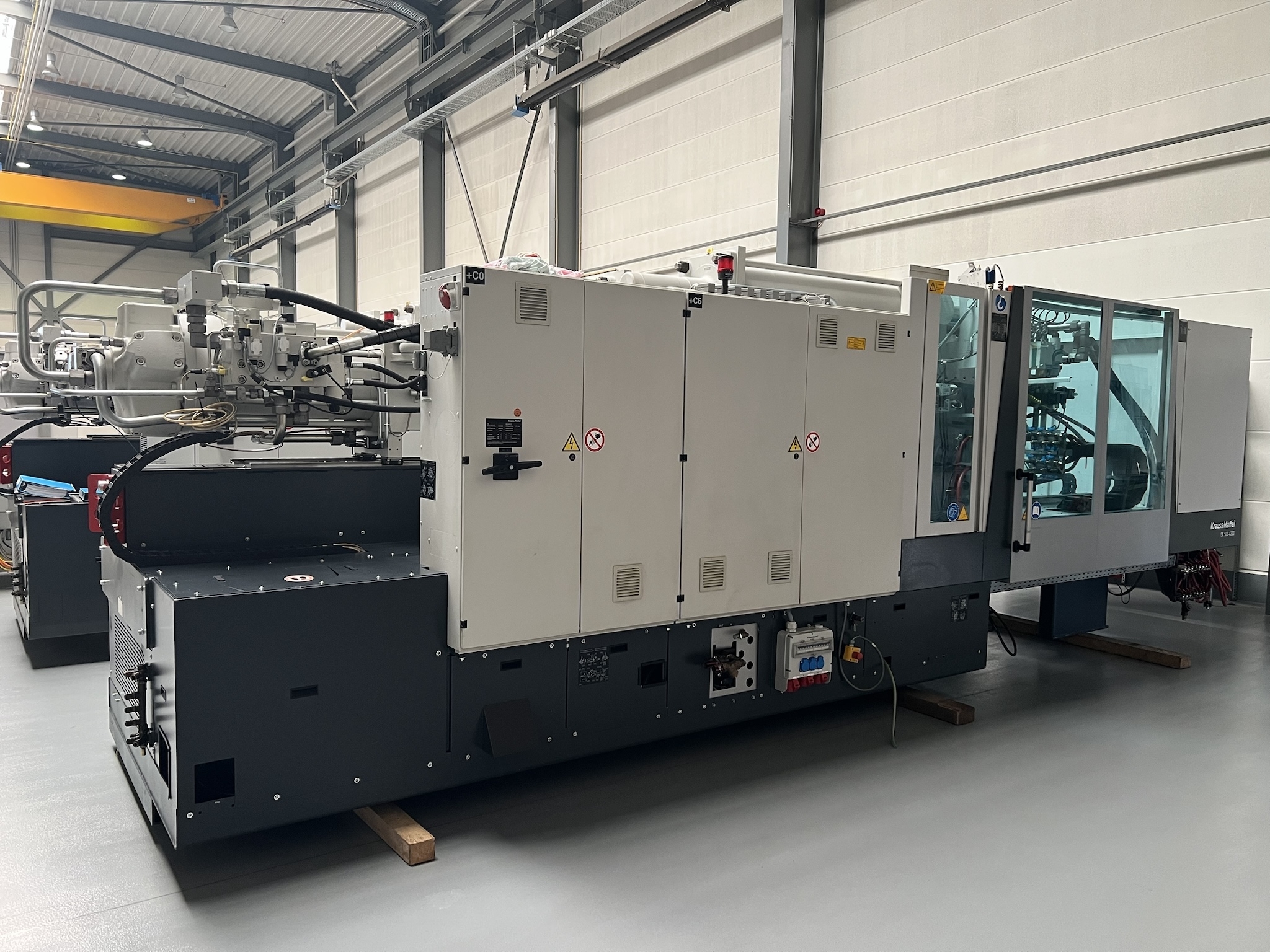

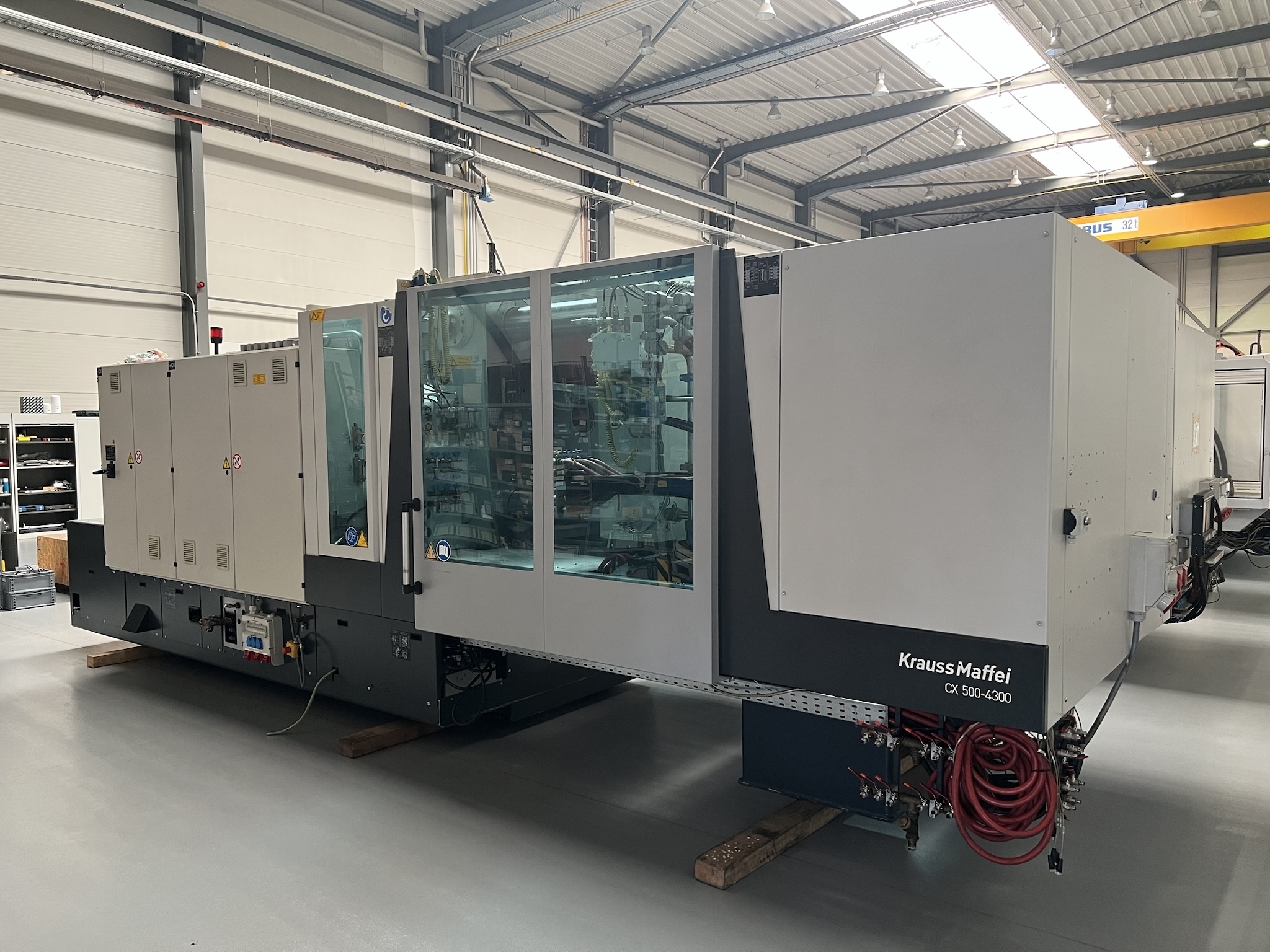

Krauss Maffei KM 500 - 4300 CX

Offer-Details:

Stock-No.

14494

Manufacturer

Krauss Maffei

Type of machine

KM 500 – 4300 CX

Year

2010

Working hours

55000 h

Controlversion

MC 5

Screentext

German

Location

Eschweiler - Germany

Clamping unit:

Clamping force

5000

kN

Mould opening force, max.

279

kN

Travel force movable platen opening

137,1

kN

Travel force movable platen closing

116,8

kN

Size of mould platens (h x v)

1370 x 1200

mm

Distance between tie bars (h x v)

1000 x 800

mm

Mould opening stroke

1170

mm

Mould height min

480

mm

Max. daylight

1650

mm

Hydraulic ejector - stroke

250

mm

Ejector force

95

kN

Injection unit:

Screw diameter

90

mm

Ls/D ratio

20

Injection pressure

1839

bar

Stroke volume

2290

ccm

Shot weight (PS)

2084

gr.

Injection rate

604

ccm/s

Screw speed

195

1/min

Plasticising rate max.

134,2

g/s

Nozzle pressure

129,4

kN

Electric and Hydraulic Equipment:

Nominal capacity of pump motor

90

kW

Installed heating capacity

44

kW

Adjustable barrel heating zones

7

Reservoir capacity

1175

ltr.

Dimensions and weights:

Dimensions of the machine ca.

8,00 x 2,52 x 2,40

m

Total machine weight

28800

kg

Max. mould weight

7900

kg

Accessories:

- Anti vibration pads

Additional Options:

- 1 x air valve

- 2 x core pull on fix plate

- 2 x core pulls on movable plate

- 8 x hotrunner controller

- Robot interface according to Euromap 67
