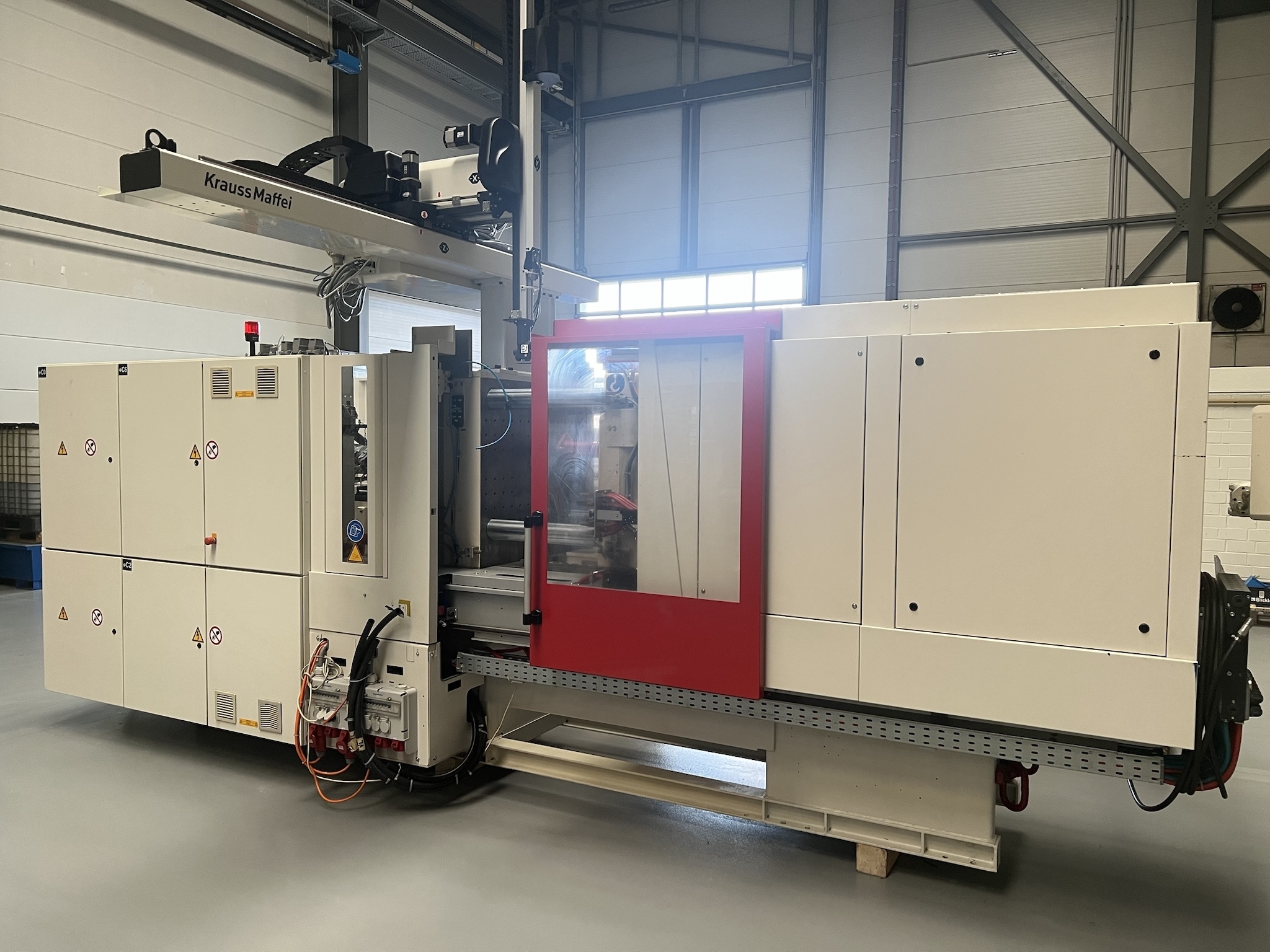

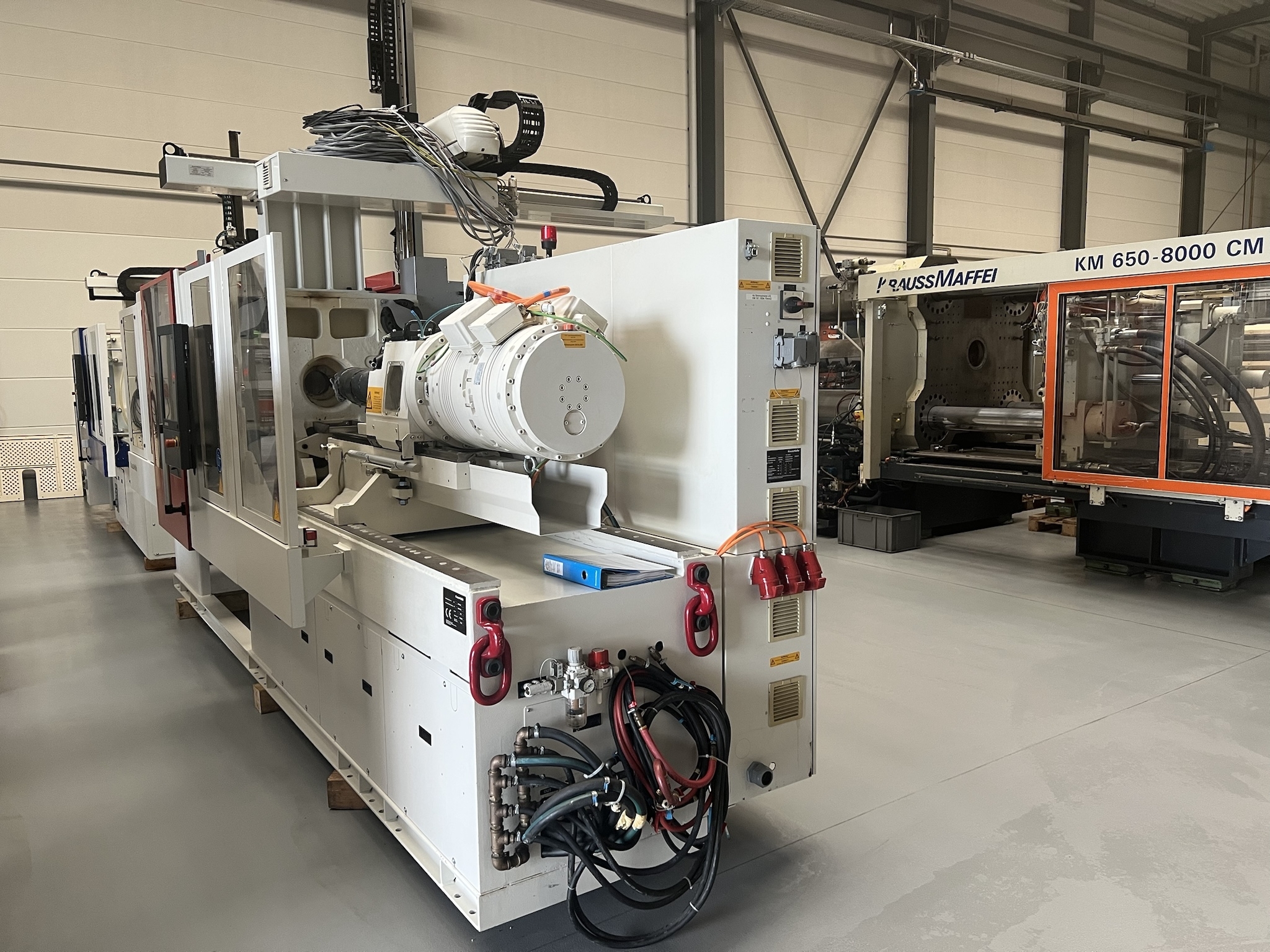

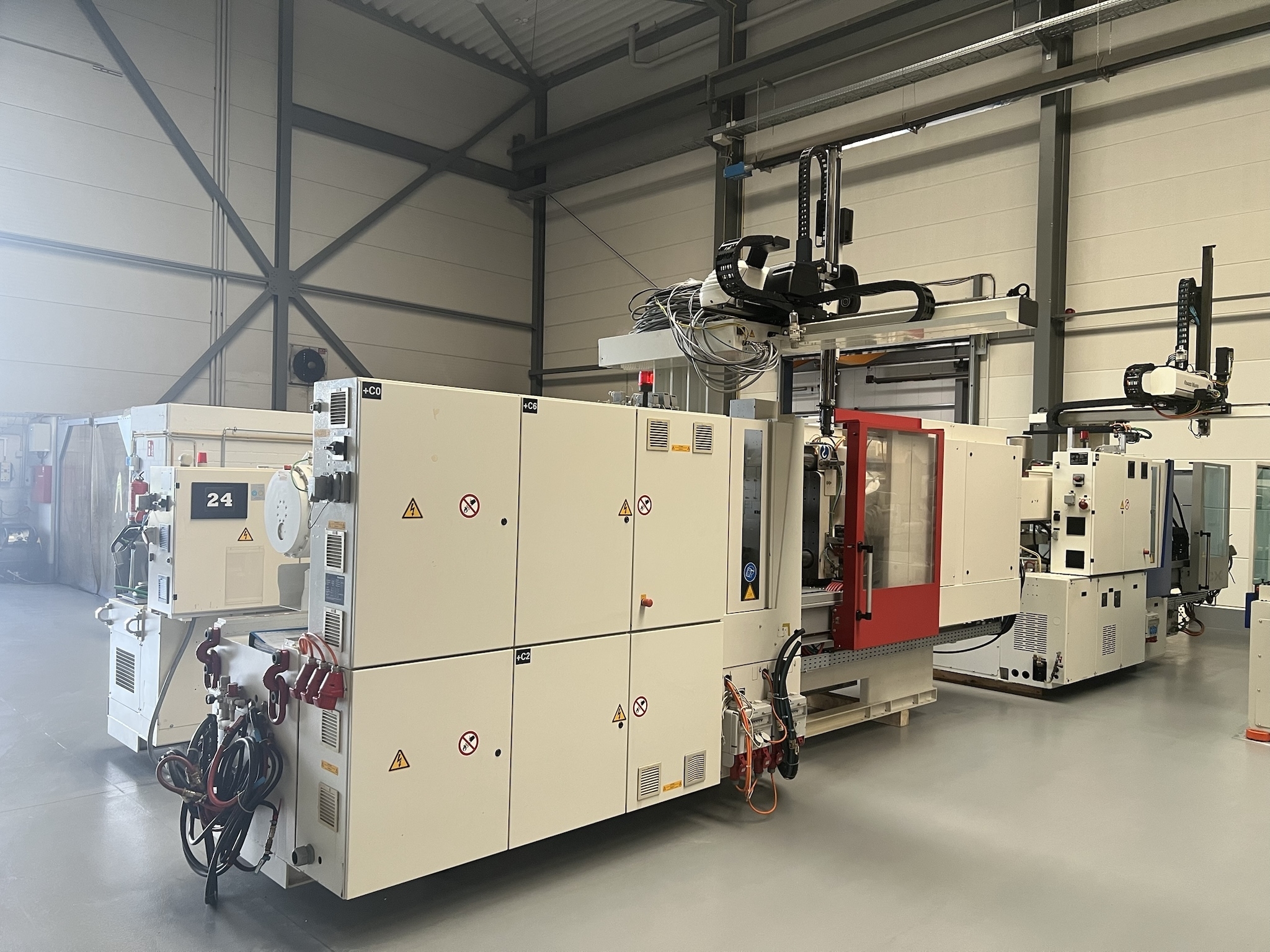

Krauss Maffei KM 160 - 180 EX incl. LRX 100
Price on request
Do you have any questions or need support?
We will be happy to help you!
+49 (0) 2403 / 5554 160
Used injection moulding machine Krauss Maffei KM 160 - 180 EX MC6
|
Offer-Details: |
|
|
Stock-No. |
14493 |
|
Manufacturer |
Krauss Maffei |
|
Type of machine |
KM 160 - 180 EX |
|
Year |
2016 |
|
Working hours |
38950 h |
|
Controlversion |
MC 6 |
|
Screentext |
D/EN/PL/CN |
|
Location |
Eschweiler - Germany |
|
Clamping unit: |
|
|
|
Clamping force |
1600 |
kN |
|
Mould opening force, max. |
240 |
kN |
|
Size of mould platens (h x v) |
930 x 860 |
mm |
|
Distance between tie bars (h x v) |
630 x 520 |
mm |
|
Mould opening stroke |
450 |
mm |
|
Mould height min/max |
300 / 550 |
mm |
|
Max. daylight |
1000 |
mm |
|
Hydraulic ejector - stroke |
150 |
mm |
|
Ejector force |
22 |
kN |
|
Injection unit: |
|
|
|
Screw diameter |
25 |
mm |
|
Ls/D ratio |
26 |
|
|
Injection pressure |
2500 |
bar |
|
Stroke volume |
59 |
ccm |
|
Shot weight (PS) |
53,7 |
gr. |
|
Injection rate |
147 |
ccm/s |
|
Screw speed |
477 |
1/min |
|
Plasticising rate max. |
12 |
g/s |
|
Nozzle pressure |
30 |
kN |
|
Electric and Hydraulic Equipment: |
|
|
|
Nominal capacity of pump motor |
28 |
kW |
|
Installed heating capacity |
8,1 |
kW |
|
Adjustable barrel heating zones |
5 |
|
|
Dimensions and weights: |
|
|
|
Dimensions of the machine ca. |
6,00 x 2,00 x 2,20 |
m |
|
Total machine weight |
13200 |
kg |
|
Max. mould weight |
1900 |
kg |
|
Accessories: |
|
|
|
- Anti vibration pads |
|
- Krauss Maffei Robot LRX 100 |
|
X: 550 mm |
|
Y: 1200 mm |
|
Z: 2000 mm |
|
C: 0 - 90 ° |
|
Additional Options: |
|
|
|
- 2 x Air valve |
|
- 5 x core pulls, Software only |
|
- 12 x hotrunner controller |
|
- Robot interface according to Euromap 67 |
